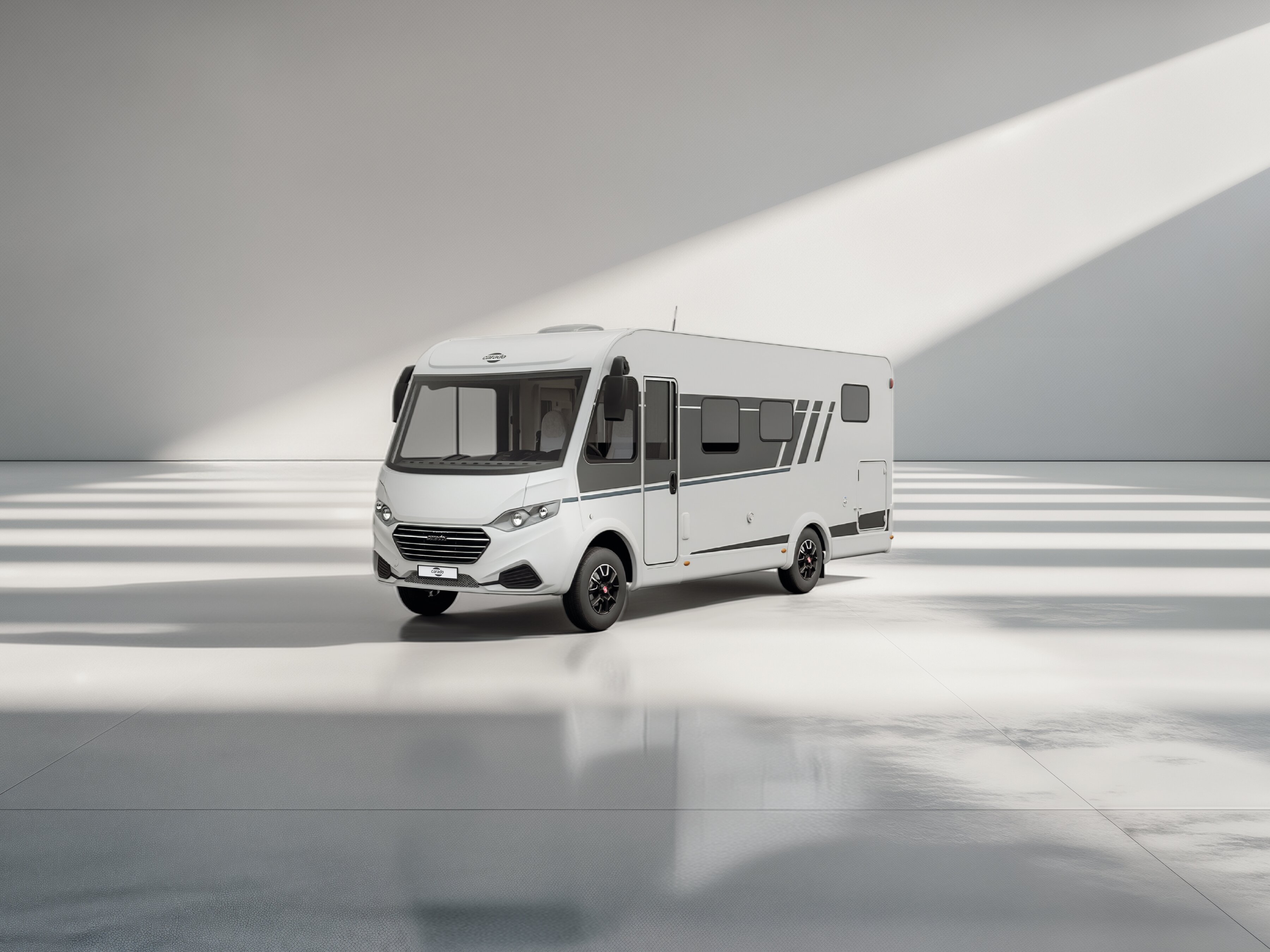

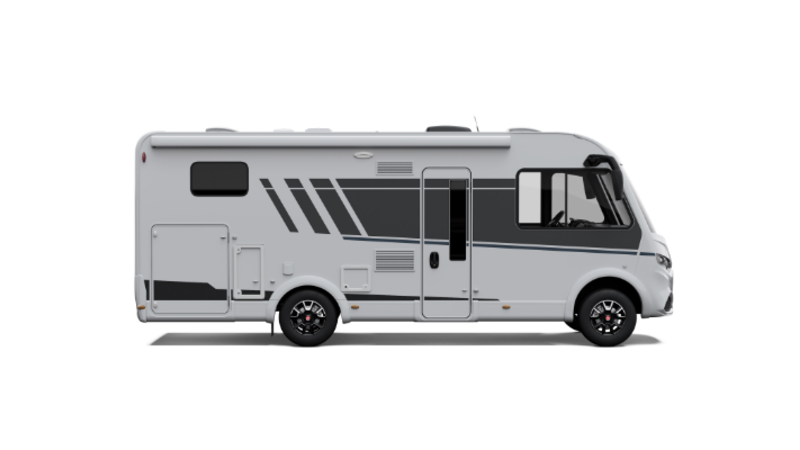

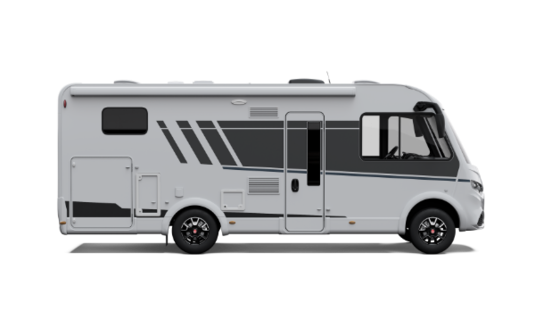

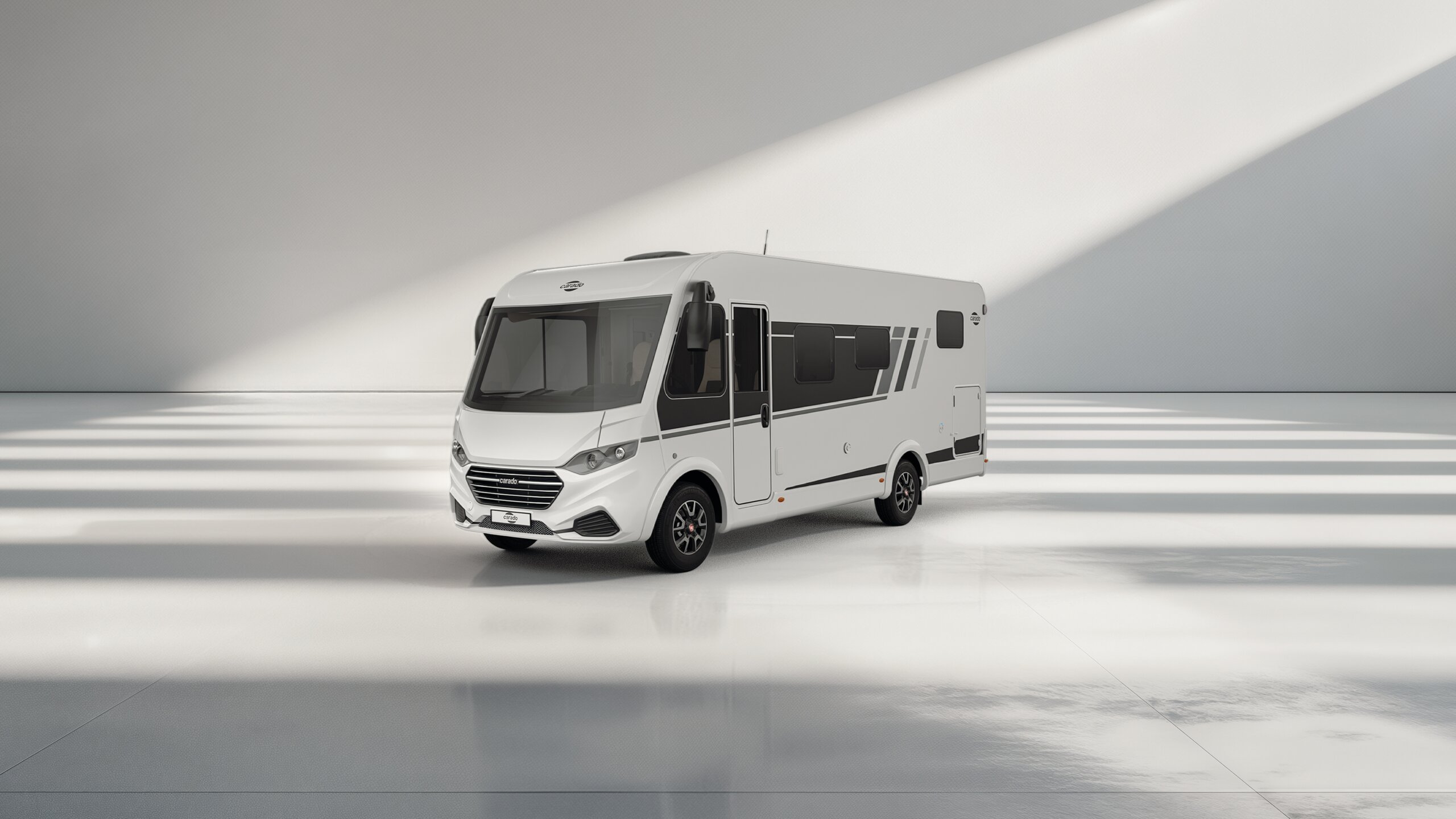

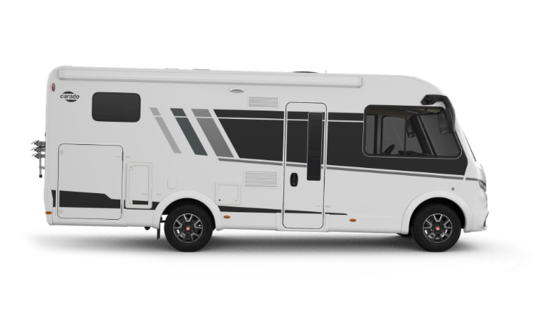

The I338 combines premium motorhome comfort with an outstanding sense of open space thanks to its fully integrated design. With four sleeping berths on board, it is the ideal companion for family holidays.
Chassis
A range of chassis is available to suit your needs, tailored entirely to your preferences. Please select your preferred chassis.
-
Integrated
I338
- Preis
-
ab 76.699 €
- Chassis
- Fiat Ducato
- Sleeping berths
- 4
- Length
- 699 cm
- Width from
- 232 cm
- Height
- 290 cm
Important information regarding the selection of your motorhome
When buying a motorhome, camper van or urban vehicle (hereafter: motorhome), it is particularly important to choose the right layout and an appealing design. In addition, weight also plays an essential role. Family, friends, optional equipment, accessories and baggage – space must be available for all of these. At the same time, there are legal and technical limits to the configuration and load. Every motorhome is designed for a certain weight, which may not be exceeded during driving. For motorhome buyers, this raises the question: How should I configure my vehicle to accommodate passengers, baggage and accessories according to my needs without the vehicle exceeding this maximum weight? In order to make this decision easier for you, we provide you below with a few tips that are particularly important when selecting your vehicle from our portfolio:
1. The technically permissible maximum laden mass…
… is a value set by the manufacturer which the vehicle may not exceed. Carado specifies a layout-related upper limit for the vehicle, which can vary from layout to layout (e.g. 3,500 kg, 4,400 kg). You can find the corresponding specification for each layout in the technical data.2. The mass in running order…
... consists – to put it simply – of the basic vehicle with standard equipment plus a standard weight of 75 kg for the driver. It is legally permissible and possible for the mass in running order of your vehicle to deviate from the nominal value stated in the sales documents. The permissible tolerance is ± 5 %. The permissible range in kilograms is given in brackets after the mass in running order. In order to provide you with full transparency regarding possible weight deviations, Carado weighs each vehicle at the end of the line and informs your trade partner of your vehicle's weighing result for forwarding to you.
Detailed explanations on the subject of mass in running order can be found in the “Legal Information” section.3. The permitted number of seats (including driver)…
… is determined by the manufacturer in what is referred to as the type-approval procedure. This results in what is referred to as the mass of the passengers. For this, a standard weight of 75 kg per passenger (without driver) is calculated.
Detailed explanations on the subject of mass of the passengers can be found in the “Legal Information” section4. The manufacturer-specified mass for optional equipment…
… is a value set by Carado per layout for the maximum mass of optional equipment that can be ordered. This limit is intended to ensure that the minimum pay-mass, i.e. the legally prescribed free mass for baggage and retrofitted accessories, is actually available for the vehicle load capacity of the vehicles delivered by Carado. If, in exceptional cases, the weighing at the end of the line nevertheless shows that the actual load capacity falls short of the minimum pay-mass due to a permissible weight deviation, we will check together with your trade partner and you whether we should, for example, increase the load capacity of the vehicle, reduce the number of seats or remove optional equipment before delivering the vehicle.
Detailed explanations on the subject of the effects of the tolerances on the minimum pay-mass and the payload can be found in the “Legal Information” section.5. The additional weight of optional equipment and packages...
... increases the actual mass of the vehicle (= mass in running order plus selected optional equipment) and reduces the pay-mass. The specified value shows the additional weight compared to the standard equipment of the respective layout. The total weight of the selected packages and optional equipment must not exceed the manufacturer-specified mass for optional equipment.Technical data
I338
Pricing information:
Basic price incl. VAT 76.699 € Chassis and engine:
Chassis Fiat Ducato Standard engine 2.2 kW (BHP) 103 (140) Tire size 215/70 R 15 CP Vehicle dimensions:
Length | Width | Height (cm) 699 / 232 / 290 Headroom in living area (cm) 210 Wheelbase (cm) 380 Inner dimensions storage locker right/left W x H (cm) 95 x 110 75 x 80 OPT Weight-related information:
Permitted number of seats (including driver)* 4 Mass in running order (kg)* 2887 (2743 to 3031)* Manufacturer-specified mass for optional equipment (kg)* 263 Technically permissible maximum laden mass (kg)* 3500 Trailer load braked (unbraked) (kg) 2000 (750) Technology:
Fresh water tank capacity total / at driving filling (l) 122 / 20 Waste water tank (l) 92 Sockets 230 V 4 Sockets: USB 4 Gas bottle storage (filling weight in kg) 2 x 11 Interior:
Berths 4 Bed dimension rear L x B (cm) 190 x 80 200 x 80 210 x 159 OPT Refrigerator volume incl. freezer (l) 78 (11) 156 (29) OPT Miscellaneous:
Lying area Alcove / pull-down bed / Clever-lift bed (cm) 200 x 150 Heating type Combi 6 Gas a) This is a recommended retail price based on German retail prices. Prices in other countries may differ due to currency conversion and country-specific VAT, fees and import duties. For the latest information, please always enquire with a local dealer about the prices applicable in your country.
* The specified mass in running order is a default value defined in the type-approval procedure. Due to manufacturing tolerances, the actual weighed mass in running order may deviate from the value stated above. Deviations of up to ± 5 % of the mass in running order are legally permissible and possible. The permissible range in kilograms is given in brackets after the mass in running order. The manufacturer-specified mass for optional equipment is a calculated value for each type and layout that [brand] uses to determine the maximum weight available for factory-fitted optional equipment. The limitation of optional equipment is intended to ensure that the minimum pay-mass, i.e. the legally prescribed free mass for baggage and retrofitted accessories, is actually available for the vehicle load capacity of the vehicles delivered by [brand]. The real weight of your vehicle ex works can only be determined when it is weighed at the end of the line. If, in exceptional cases, the weighing shows that the actual load capacity falls below theminimum pay-mass despite limiting the optional equipment due to a permissible weight deviation, we will check together with your trade partner and you whether we should, for example, increase the load capacity of the vehicle, reduce the number of seats or remove optional equipment before delivering the vehicle. The technically permissible maximum laden mass of the vehicle and the technically permissible maximum mass on the axle must not be exceeded.-
Chassis / Base vehicle Fiat Ducato 3.500 kg | 2.2 | 103 kW | 140 BHP Euro 6 | 6-speed manual gearbox Wide-track chassis Front wheel drive Cruise control Driver and Passanger airbag ABS, EBD (electronic brake force distribution), ESP (electronic stability program) ESC (electronic stability control) including ASR (anti-skid control), hill holder (hill start assist), CWA (crosswind assist), trailer stability control and PCB (post-collision braking) Traction+ incl. hill descent assistant Start & Stop function incl. charge booster Low vibration, electrical and heated cab mirrors in coach optic with wide angle Panoramic laminated glass windshield all-round Fix & Go breakdown kit Central cup holder Multifunction steering wheel USB socket (A+C) Comfortable driving experience with rear and front axle stabilizers Disc brakes | heat convection | tachometer | power steering | immobiliser | 3-point seat belt 15" steel rims Tyres M+S Camping (snowflake) Pilot seats with covers Driver and passenger seat with lumbar support Driver and passenger seats swivel on Low Profile A-Class models and Overcab A132 60 l fuel tank Height and tilt adjustable driver and front passenger seats Headlamp trim in grey Full LED front lighting (daytime running light, low beam, high beam and turn signal) Daytime running lights integrated in headlights Driver´s cab door left Radio pre-wiring with loudspeakers and antenna Exterior setup 7-year water ingress warranty GRP (glass fibre reinforced plastic) roof and rear wall Aluminium sidewalls Roof and sidewall thickness 34 mm | floor thickness 42,5 mm Rear light carrier in three parts with integrated LED multifunction lights Cab blinds for best insulation and privacy shield Double glazed hinged window with cassette blinds and flyscreens (except for bathroom) Roof light with frosted perspex glass and flyscreen Coupé entrance Large rear garage with lowered frame | lashing rings and interior lighting (depending on model) Splash water seals for the exterior storage locker and doors Payload in garage up to 150 kg High quality entrance door with ergonomic handle inside and outside Comfort Ergonomically shaped upholstery for improved seating comfort Isofix for 2 seats Table extension High-quality mattress in all beds Removable and washable mattress cover Wooden slatted frame in all fixed-beds for better sleeping comfort Pull-down bed with Clima-Plux elements Spacious storage compartments and storage options Ventilation for storage locker and seat backrest Floor in 'Calais' Furniture in 'Visby Oak' and 'Sand grey' Installations LED lighting integrated above the roof cabinets High-performance, maintenance-free leisure battery (95 Ah AGM) On-board control panel supplies information about filling levels and battery capacity Automatic switching and separating systems for starter and leisure battery as well as for refrigerator Electric charger for leisure and vehicle battery 12 V / 18 A CEE 230 V external socket with safety device Residual Current Device (RCD) LED awning light LED interior light Mirror and coat hooks USB Socket 3x A / 1x C (layout depending) Fresh water tank capacity total 122 l | waste water tank 92 l Heating / gas supply Gas bottle locker for 2 x 11 kg gas bottles Gas heating Combi 6 Gas control valves easily accessible and centrally arranged Kitchen Ergonomically arranged kitchen with spacious work top Large soft-close drawer in kitchen 2 burner hob and glass lid Large stainless steel circular sink with cover LED light band Waste bin Fridge 78 l with 11 l freezer compartment Bathroom equipment Vario-bathroom Swivel cassette toilet with electric flush Roof vent with integrated flyscreen blind (depending on model) Large mirrors Clothes rail in bathroom Soft furnishing Soft furnishing in White -
Packs pro+ Pack I338 Basic Pack Digital Pack Optic Pack 2 | Alloy wheels Chassis / Base vehicle Fiat Ducato 3.500 kg | 2.2 | 103 kW | 140 BHP Euro 6 | 8-speed automatic gearbox Fiat Ducato 3.500 kg | 2.2 | 132 kW | 180 BHP Euro 6 | 8-speed automatic gearbox 90 l fuel tank Electric parking brake Tyre pressure indicator Weight increase to 3.650 kg (no chassis modification) * Fiat Ducato Maxi Chassis 4.400 kg | 2.2 | 132 kW | 180 BHP Euro 6 | 8-speed automatic gearbox* Exterior setup Insulated waste water tank Bike rack for 3 bikes Two rear corner steadies 2nd external storage door Framed windows High-level rear light cluster Comfort Carpet Wooden duckboard for the shower tray Bed conversion single to double bed Installations Large 156 l fridge with separate 29 l freezer compartment Oven in kitchen (only in conjunction with 156 l fridge) Caramatic SafeDrive PLUS Second AGM leisure battery 95 Ah Pre-cabling for solar panel Pre-cabling for reversing camera 12V TV pre-cabling incl. flat screen holder Heating Combi 6 E (with el. heating element) | digital control panel Electric floor heating in living area Mobile internet (WiFi | LTE antenna incl. router) Solar panel 100 watt incl. MPPT controller Soft furnishing Soft furnishing in Brown Soft furnishing in Grey Original Accessories Parking Pilot Smart battery system 2 blocks 45 AH (plus installation by dealer) Smart Battery System 5-block 125 AH Water filter clearliQ travel Front windscreen insulation mat for the integrated models Bike carrier for 2 bicycles (plus installation by dealer) Driver's cabin carpet Kitchen pullout (excl. installation by trade partner)

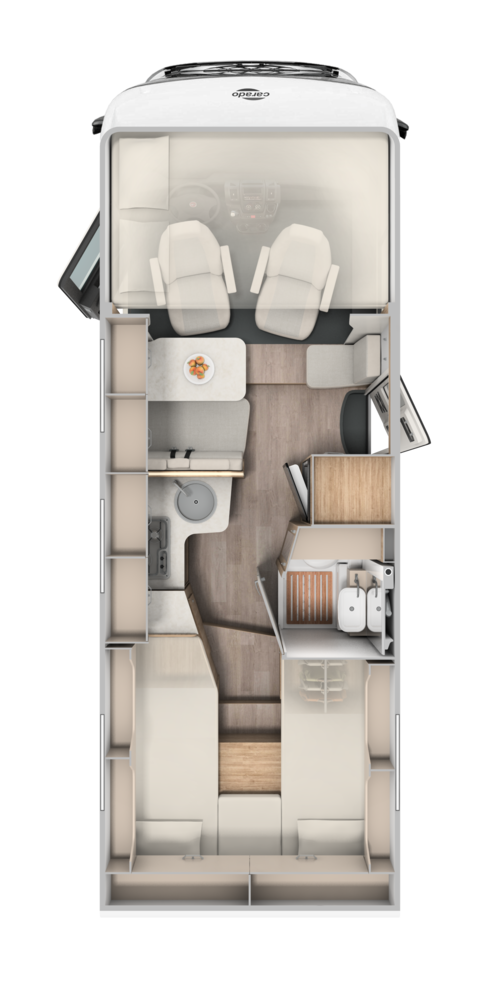

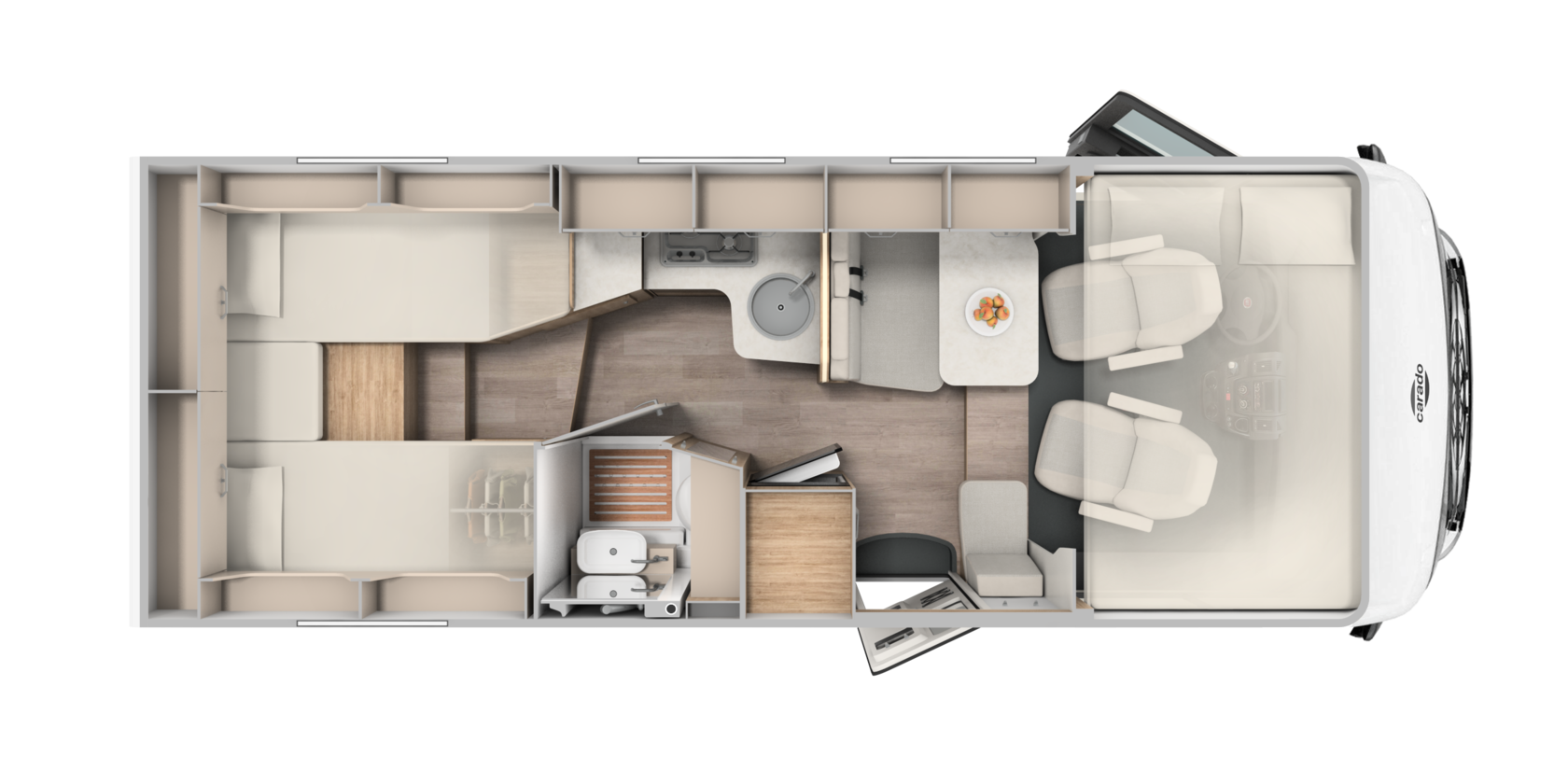

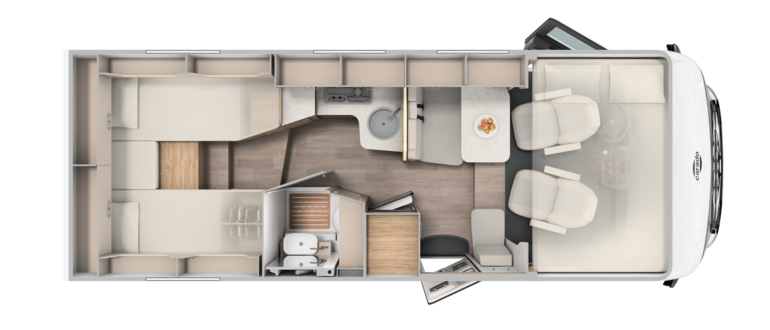

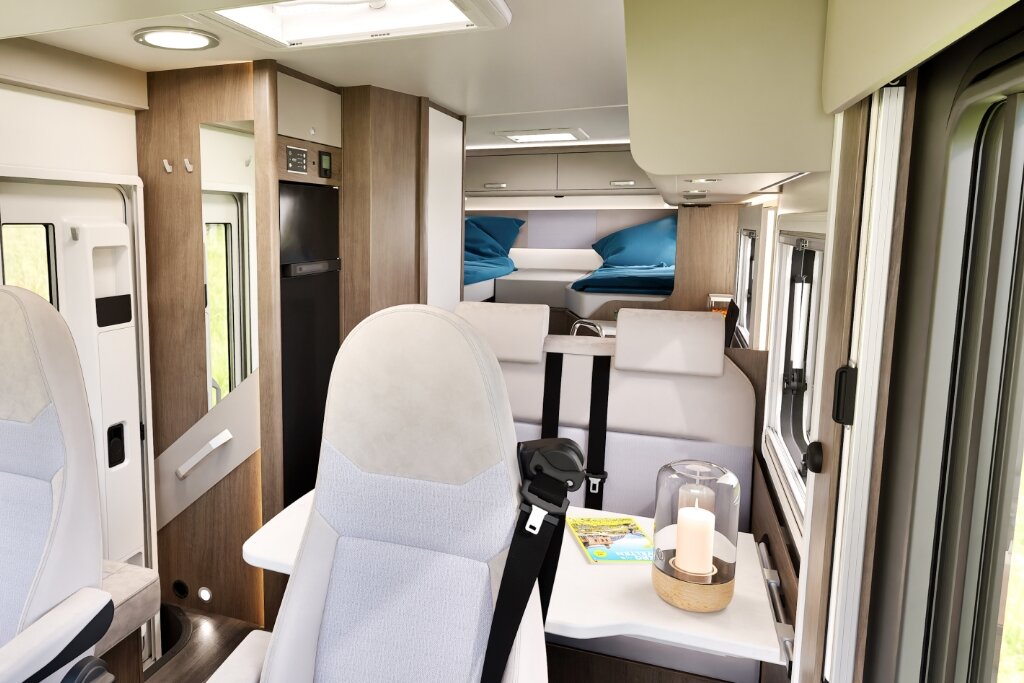

A floor plan full of ideas.

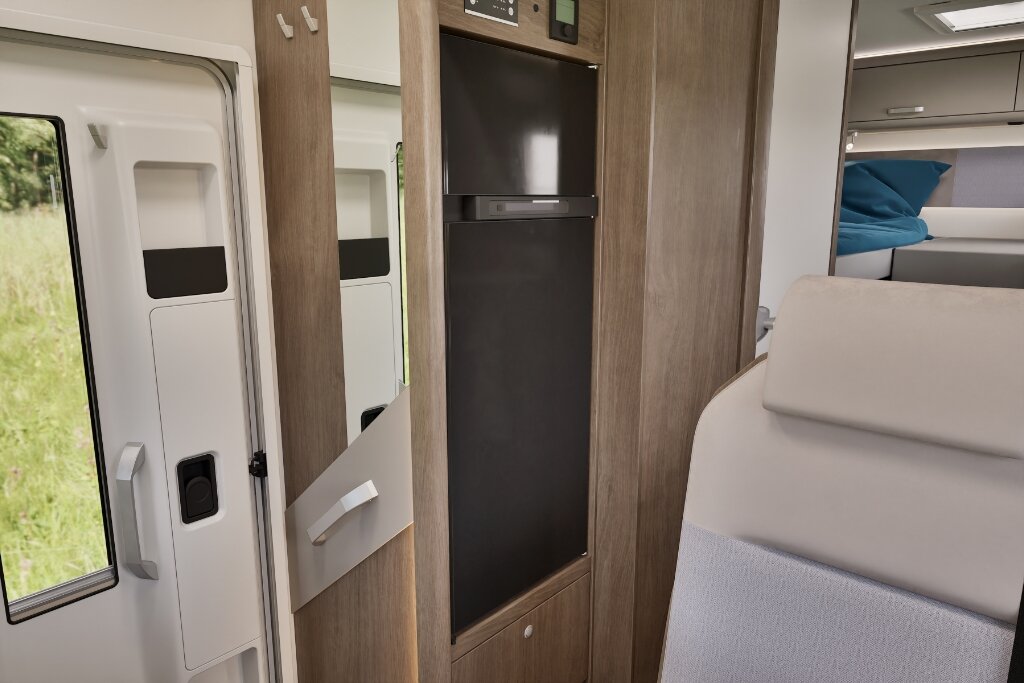

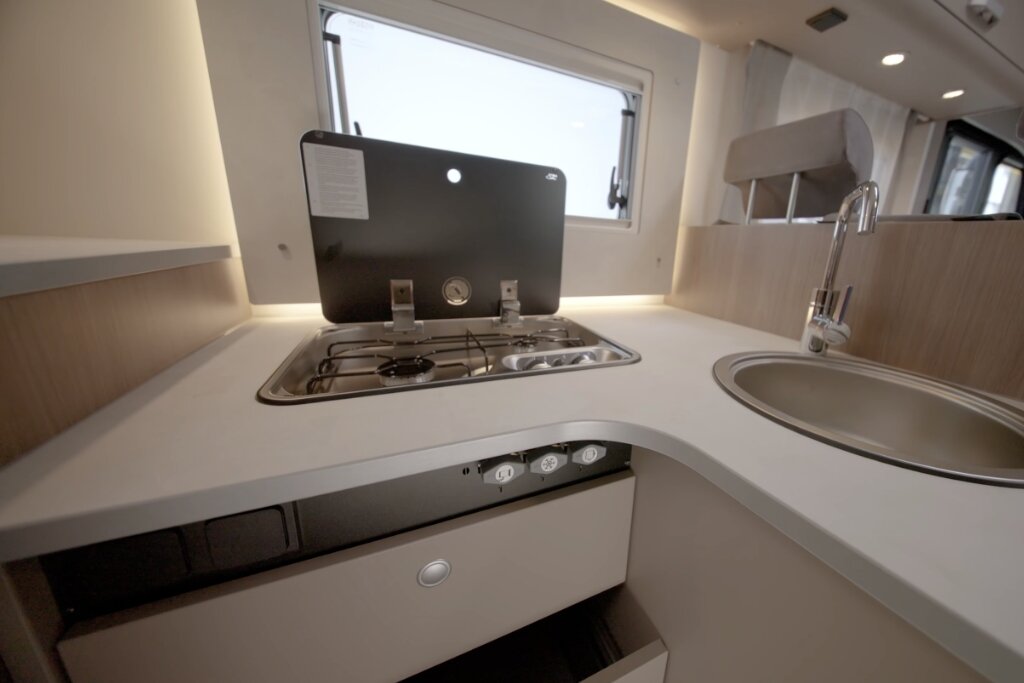

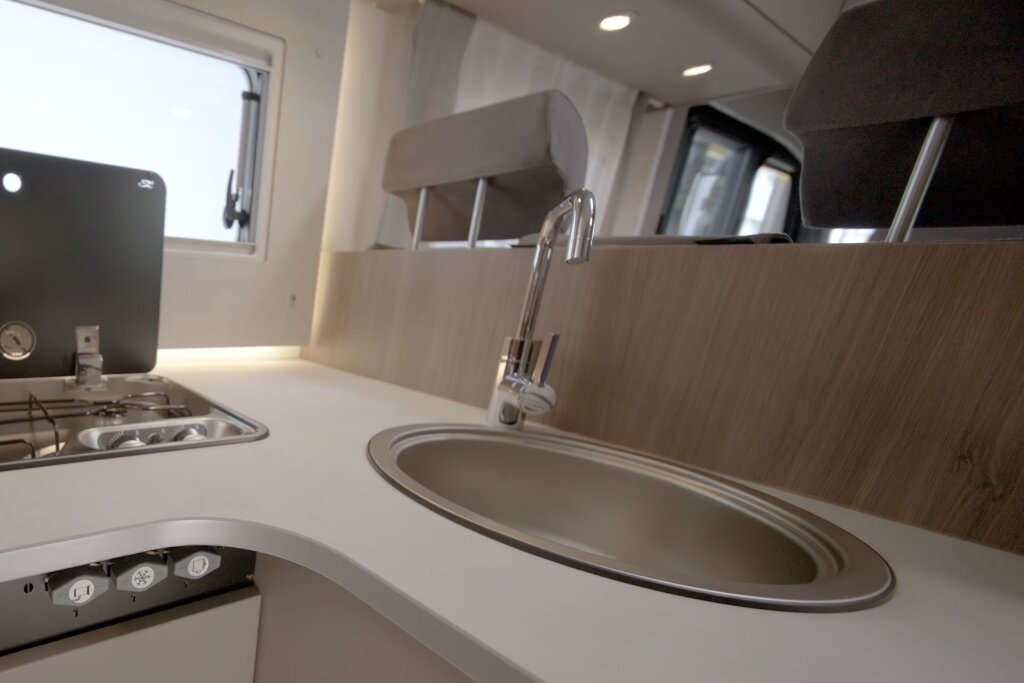

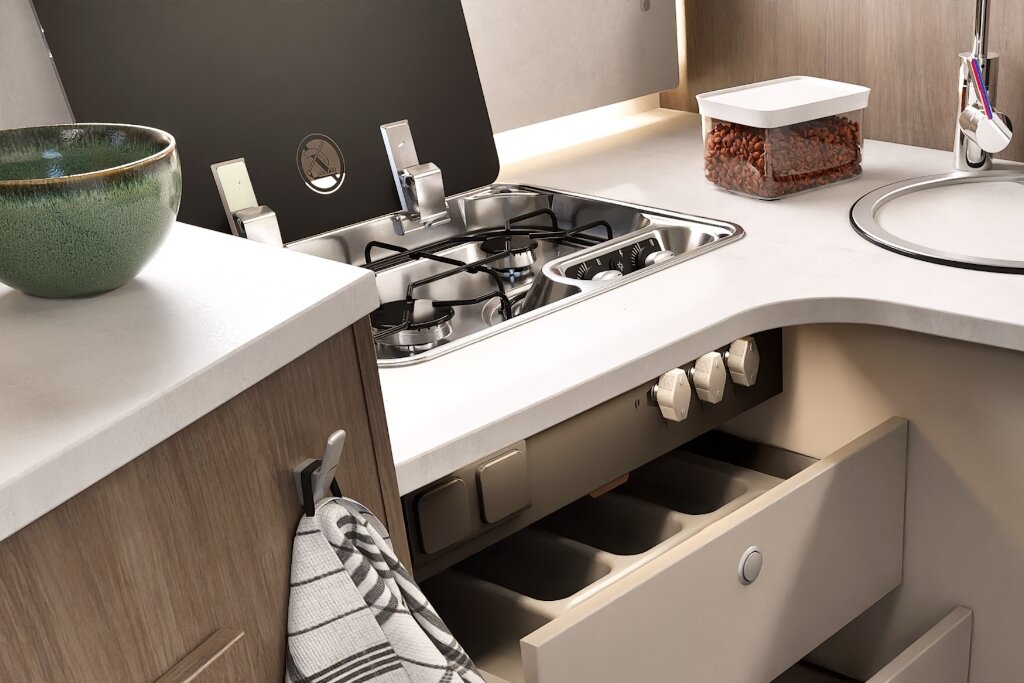

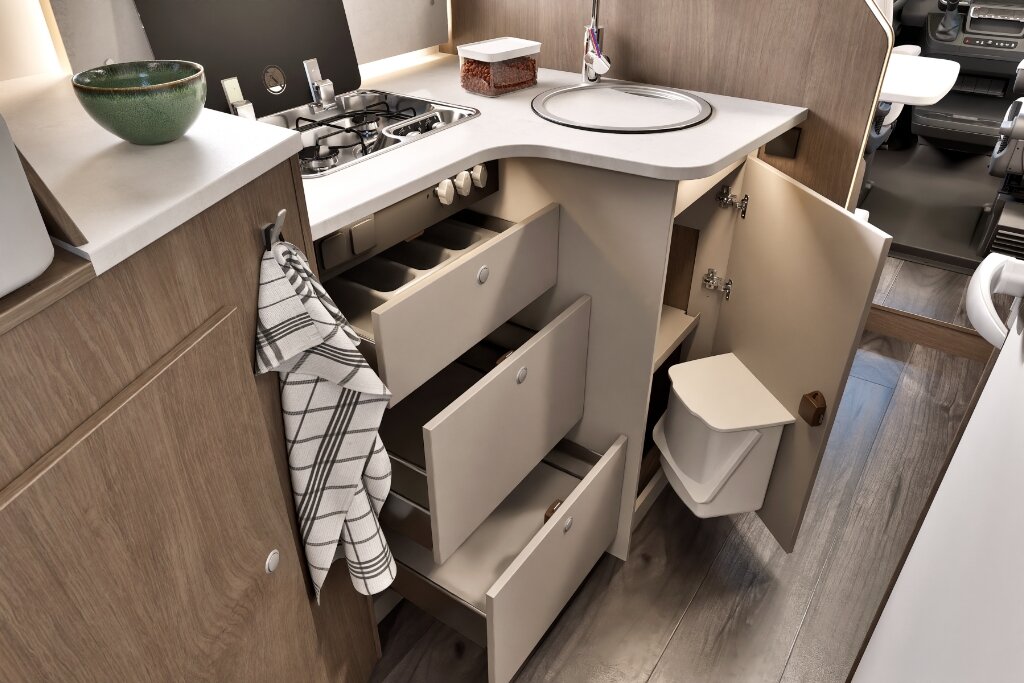

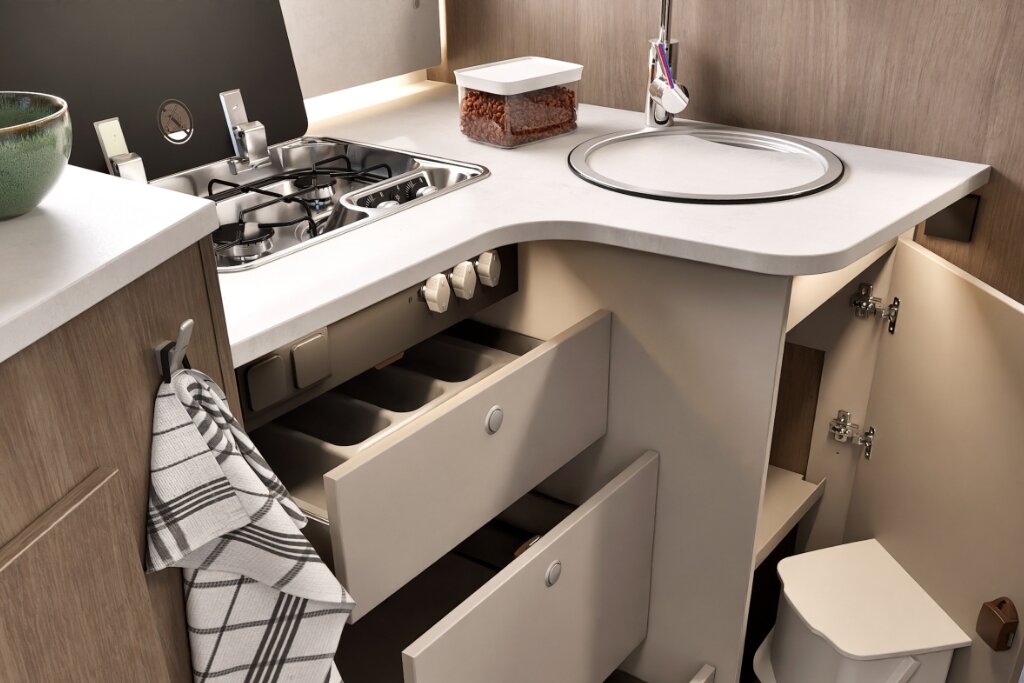

The corner kitchen offers plenty of space and blends harmoniously into the living area with its 2-burner stove and sink. Includes a 78-liter refrigerator opposite the entrance area.

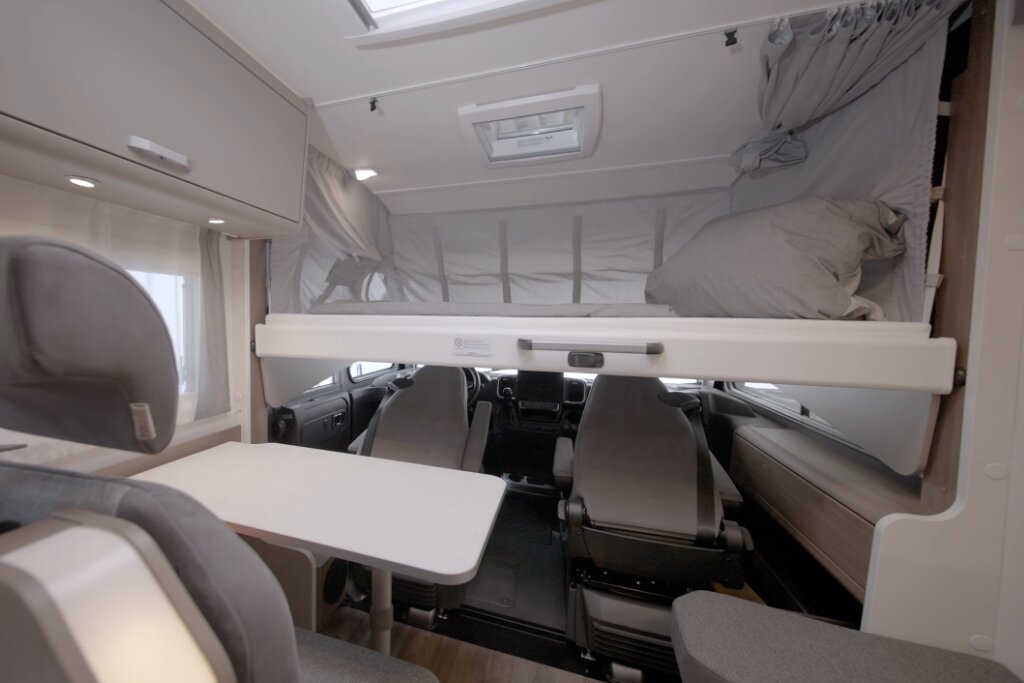

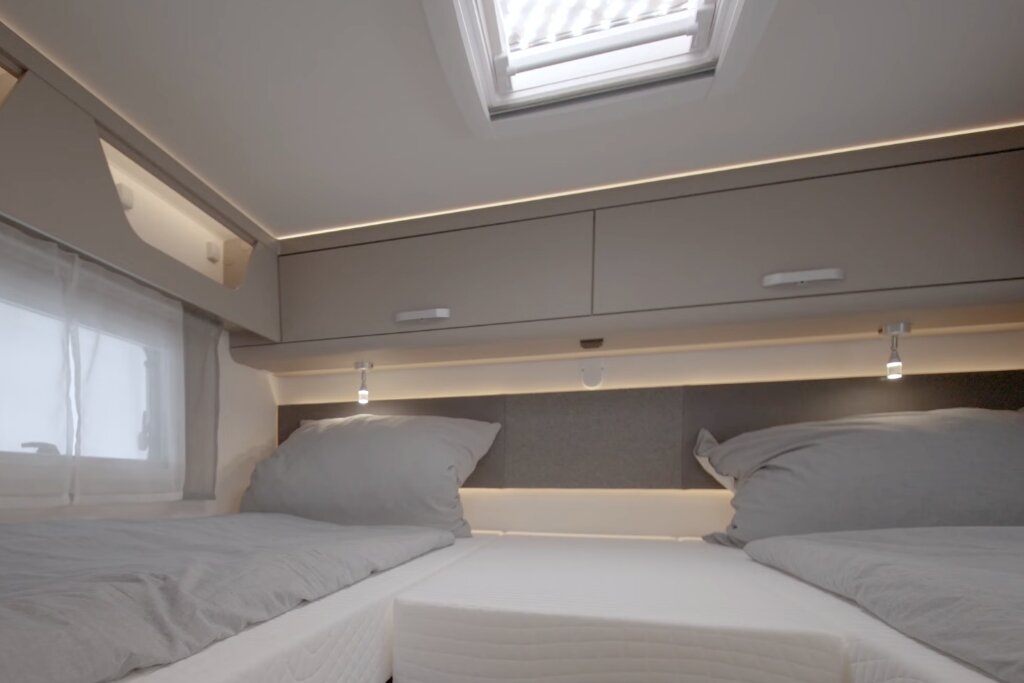

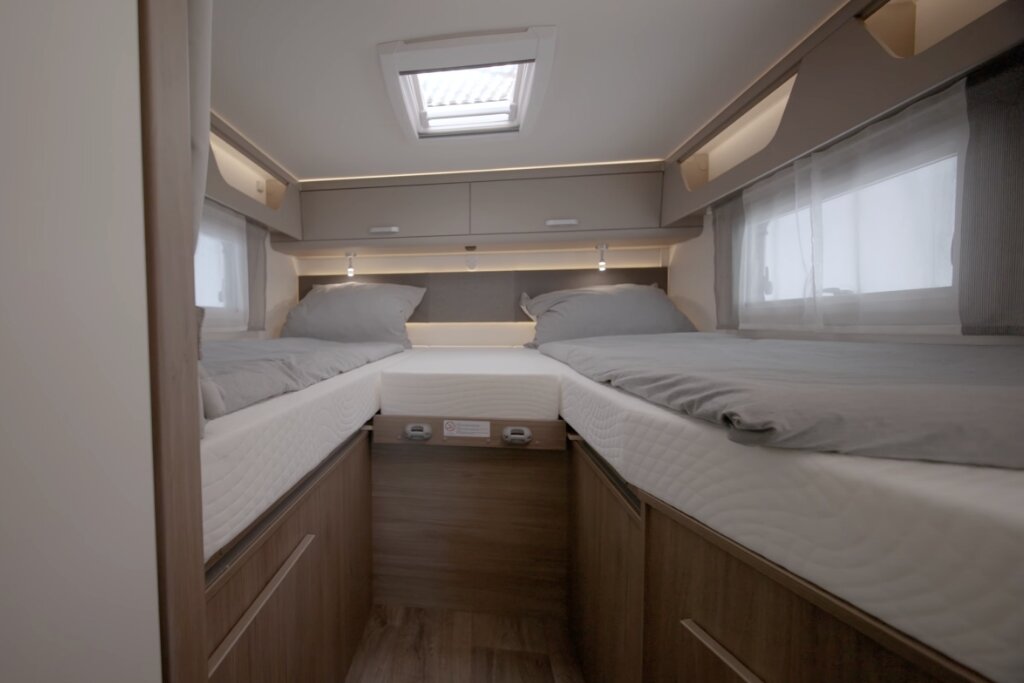

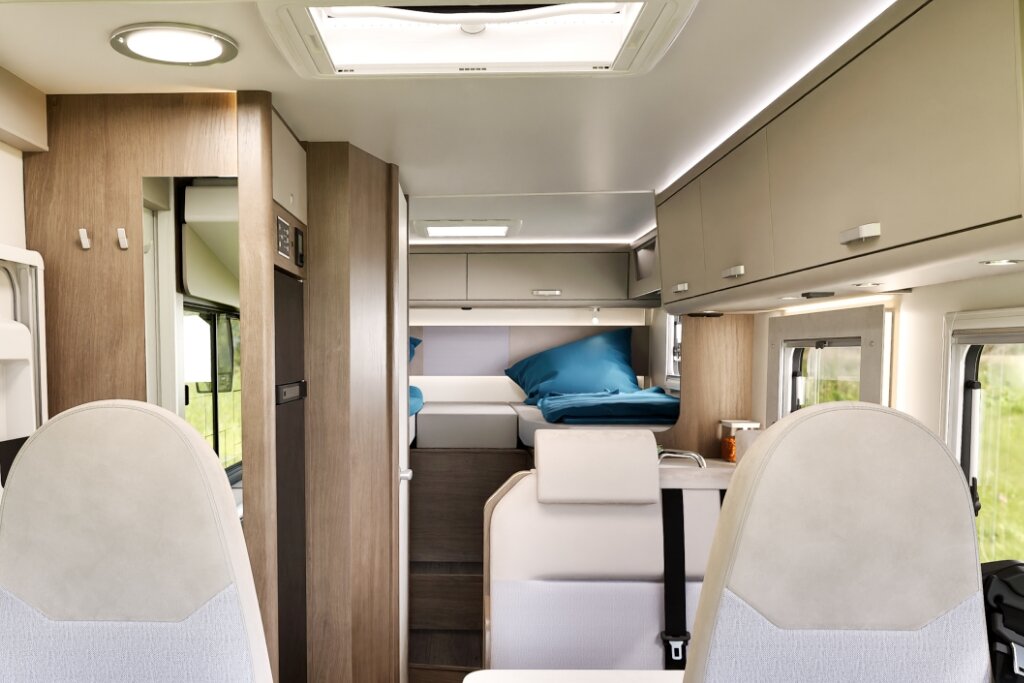

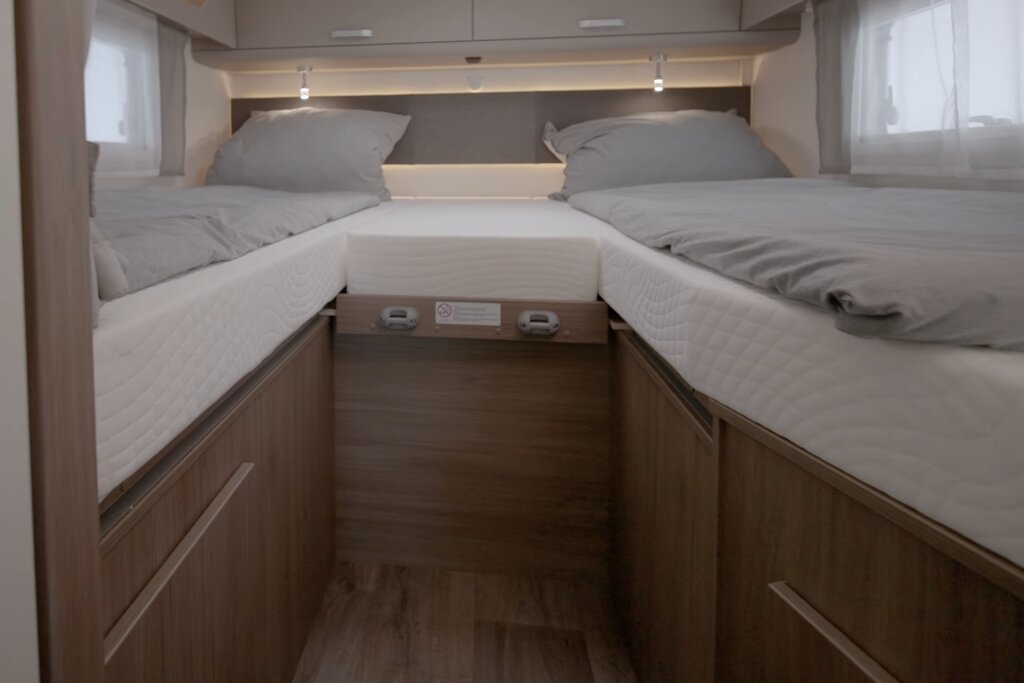

Comfortable single beds await in the rear of the I338, which can be combined with the optional center cushion extension to form a large sleeping area. A standard pop-up bed offers space for two more family members to dream.

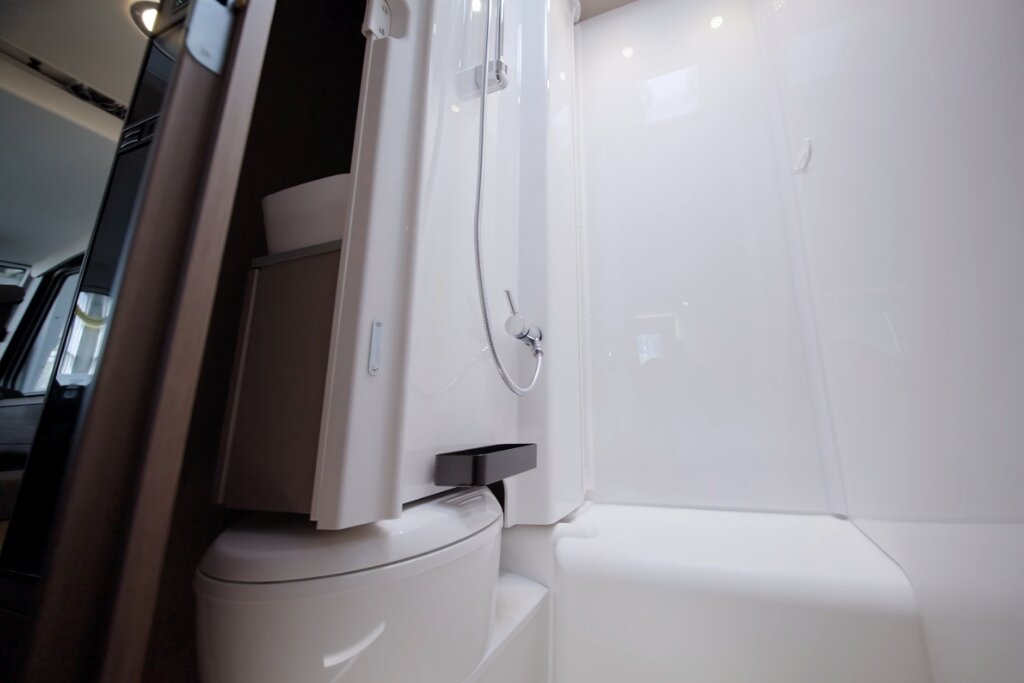

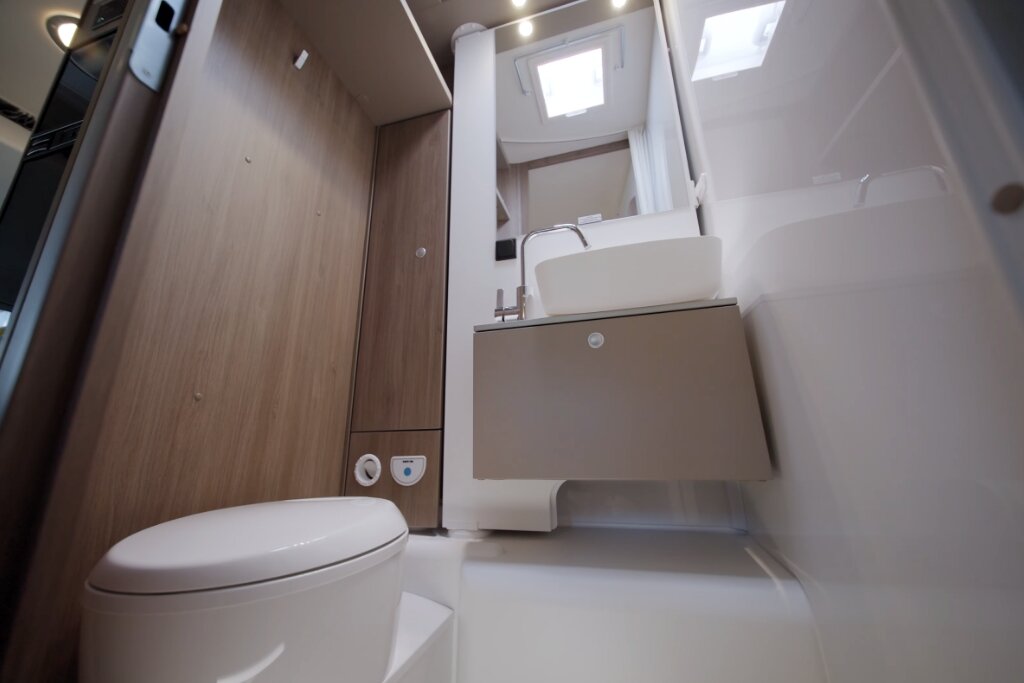

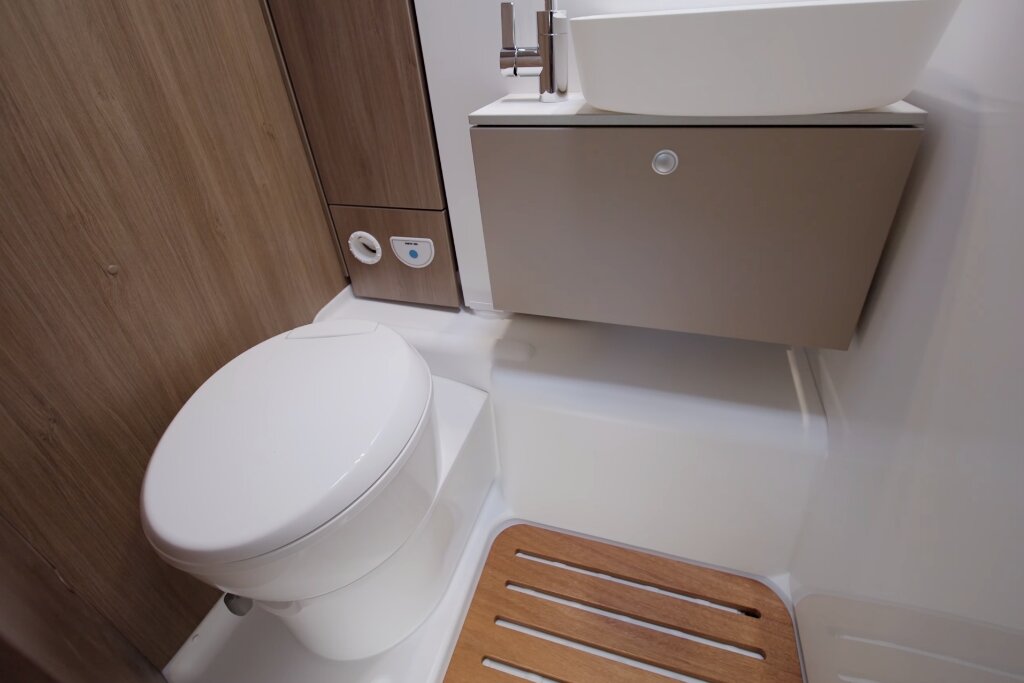

In just a few simple steps, you can transform the variable bathroom in your semi-integrated motorhome into a comfortable shower – practical, compact, and well thought out.
Even bulky items can be stored effortlessly in the large rear garage. The robust GRP body and aluminum side walls allow you to travel carefree – including a 7-year watertightness guarantee.

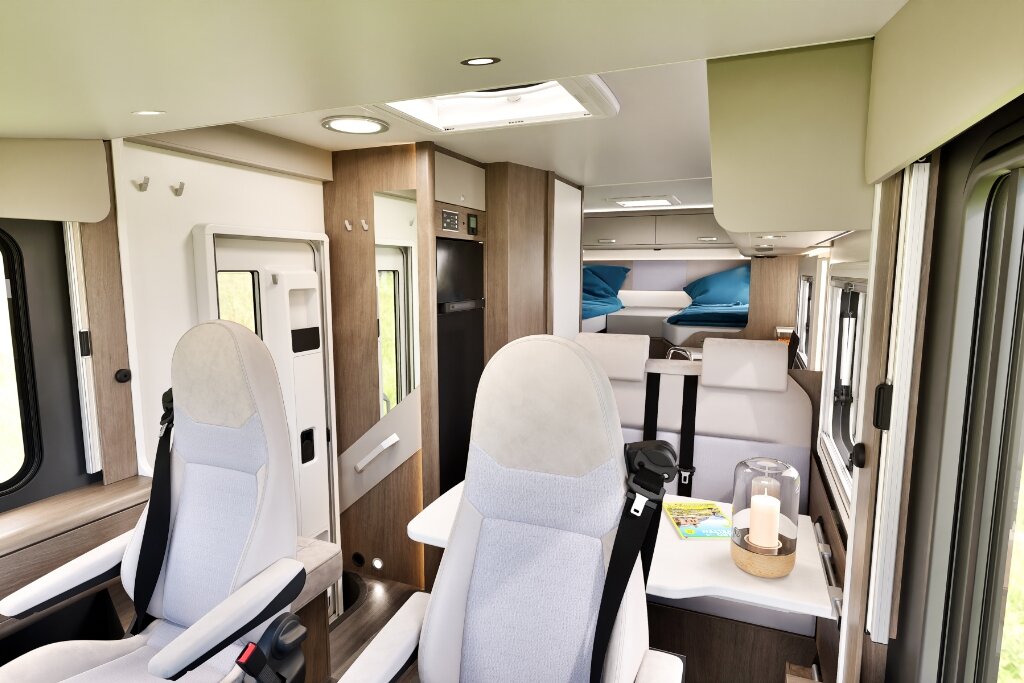

The large windshield offers excellent all-round visibility and allows plenty of light into the interior.
Interior design of your choice.
Make your Integrated motorhome your home away from home – thanks to a variety of interior design options. See for yourself! The high-quality fabrics are not only beautiful to look at, but also durable, UV-resistant, and made for years of travel.
Interior Design: White
Interior Design: Brown
Interior Design: Grey
