SEMI-INTEGRATED MOTORHOME T338 SEMI-INTEGRATED
MOTORHOME T338

The epitome of functionality: extra-long single beds with a short overall length. And with the optional overcab bed, there’s room for the whole family.

ALL IN VIEW

The open line of sight creates an enormous sense of space.

LIFT-UP BED

Holiday plus: The optional fold-down bed allows two more holidaymakers to sleep comfortably.

STORAGE SPACE

Practical storage space for a coffee machine. Good morning!

GARAGE

High load capacity and spacious garage: everything you need on holiday.

LIFT-UP BED

Holiday plus: The optional fold-down bed allows two more holidaymakers to sleep comfortably.

LIFT-UP BED

Holiday plus: The optional fold-down bed allows two more holidaymakers to sleep comfortably.

STORAGE SPACE

Practical storage space for a coffee machine. Good morning!

GARAGE

High load capacity and spacious garage: everything you need on holiday.

LIFT-UP BED

Holiday plus: The optional fold-down bed allows two more holidaymakers to sleep comfortably.

ALL IN VIEW

The open line of sight creates an enormous sense of space.

Technical Information T338

  • Standard chassis Fiat Ducato
  • Standard engine 2.2 Multijet
  • kW (BHP) 103 (140)
  • Emission standard Euro 6d
  • Tyre size 215/70 R 15 CP
  • Total length (cm) 695
  • Total width (cm) 232
  • Total height (cm) 290
  • Headroom in living area (cm) 210
  • Wheelbase (cm) 380
  • Mass in running order (kg)* 2793 (2653 to 2933)*
  • Manufacturer-specified mass for optional equipment (kg)* 356
  • Technically permissible maximum laden mass (kg) * 3500
  • Permissible towing capacity, braked, kg 2000
  • Trailer load braked (unbraked) (kg) 750
  • Permitted number of seats (including driver)* 4
  • Inner dimensions storage locker right/left W x H (cm) 95 x 110 / 75 x 80 OPT
  • Bed dimension bow L x B ca. cm 195 x 140 - 110 OPT
  • Bed dimension rear L x B (cm) 190 x 80 / 200 x 80 / 210 x 159 OPT
  • Berths 2 - 4 OPT
  • Refrigerator volume incl. freezer (l) 98 (11) / 156 (29) OPT
  • Heating type Combi 6
  • Gas bottle storage (filling weight in kg) 2x 11
  • Fresh water tank capacity total / at driving filling (l) 122 / 20
  • Waste water tank (l) 92
  • Sockets 230 V 4
  • Sockets: USB 4

Special model

T338 EDITION24



Technical Information T338 EDITION24

  • Standard chassis Ford Transit
  • Standard engine 2,0l TDCi
  • kW (BHP) 96 (130)
  • Emission standard Euro 6
  • Tyre size 225/75 R 16 CP
  • Total length (cm) 699
  • Total width (cm) 232
  • Total height (cm) 293
  • Headroom in living area (cm) 210
  • Wheelbase (cm) 3750
  • Mass in running order (kg)* 2936 (2789 to 3083)*
  • Manufacturer-specified mass for optional equipment (kg)* 200
  • Technically permissible maximum laden mass (kg) * 3500
  • Permissible towing capacity, braked, kg 2000
  • Trailer load braked (unbraked) (kg) 750
  • Permitted number of seats (including driver)* 4
  • Inner dimensions storage locker right/left W x H (cm) 75 x 110 / 75 x 80
  • Bed dimension bow L x B ca. cm 195 x 140 - 110 OPT
  • Bed dimension rear L x B (cm) 192 x 80 / 200 x 80 / 210 x 153 OPT
  • Berths 2 - 4 OPT
  • Refrigerator volume incl. freezer (l) 156 (29)
  • Heating type Combi 6
  • Gas bottle storage (filling weight in kg) 2x 11
  • Fresh water tank capacity total / at driving filling (l) 122 / 20
  • Waste water tank (l) 92
  • Sockets 12 V 1
  • Sockets 230 V 4
  • Sockets: USB 4

* The specified mass in running order is a default value defined in the type-approval procedure. Due to manufacturing tolerances, the actual weighed mass in running order may deviate from the value stated above. Deviations of up to ± 5 % of the mass in running order are legally permissible and possible. The permissible range in kilograms is given in brackets after the mass in running order.
The manufacturer-specified mass for optional equipment is a calculated value for each type and layout that Carado uses to determine the maximum weight available for factory-fitted optional equipment. The limitation of optional equipment is intended to ensure that the minimum pay-mass, i.e. the legally prescribed free mass for baggage and retrofitted accessories, is actually available for the vehicle load capacity of the vehicles delivered by Carado.
The real weight of your vehicle ex works can only be determined when it is weighed at the end of the line. If, in exceptional cases, the weighing shows that the actual load capacity falls below theminimum pay-mass despite limiting the optional equipment due to a permissible weight deviation, we will check together with your trade partner and you whether we should, for example, increase the load capacity of the vehicle, reduce the number of seats or remove optional equipment before delivering the vehicle.
The technically permissible maximum laden mass of the vehicle and the technically permissible maximum mass on the axle must not be exceeded.
Detailed information & explanations on the subject of weight and the configuration of the vehicle can be found in the section Legal information.

T338 standard specification

Body and storage space

Even more storage space: There’s room to bring all of your holiday essentials with the large rear garage and high load capacity.

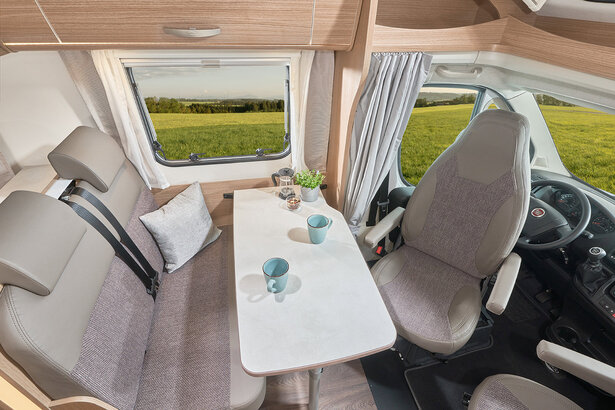

Living room

Feel right at home: The driver and passenger seats can be swivelled around to instantly create a cosy seating area around the functional table.

Sleeping area

Single or double: The handy pull-out section can quickly turn the comfy single beds in the rear into one large bed.

Kitchen

Convenience in cooking: Everything is in arm’s reach when cooking in the corner kitchen, meaning you have perfect control of everything on the two-burner hob.

Bathroom

Spa to go: The Vario bathroom has you everything you need in a bathroom, all neatly fitted into the most compact of spaces.

ISOFIX

With the ISOFIX for two seats fitted as standard, child seats can be easily and particularly firmly anchored in the vehicle. In addition, the empty child seat is also secured during the journey. The ISOFIX child seat anchorage increases the safety of your child while driving.

LED lighting

The interior lighting is equipped with LED lights as standard. This saves power consumption and increases battery life. As LEDs do not get hot, they also offer increased fire and accident safety.

Safe drawers with Servo Soft technology

The kitchen drawers provide safe storage within easy reach. In addition, all drawers have a practical Servo Soft pull-in mechanism.

Illustrations on the website are purely exemplary and may also depict optional equipment, accessories and vehicle decoration that are not part of the standard scope of delivery of the vehicles.
