Floor plan of the A361
Measuring 210 x 160 cm, the alcove bed is a comfortable classic.
The single-level flooring creates a welcoming atmosphere.
Only 6.60 metres in length with space for six. An amazing feat of space-saving design.
Compact and comfortable. The bunk beds are like cosy little retreats.
The extra-tall garage door makes it easy to load and unload.
Technical Information A361
- Standard chassis Fiat Ducato
- Standard engine 2,2 l Multijet
- kW (BHP) 88 (120)
- Emission standard Euro 6
- Tyre size 215/70 R 15 CP
- Total length (cm) 660
- Total width (cm) 232
- Total height (cm) 314
- Headroom in living area (cm) 195
- Wheelbase (cm) 380
- Mass in running order (kg) 2880 (2736 - 3024)*
- Maximum load (kg) 620
- Technically permissible total mass (kg) 3500
- Permissible towing capacity, braked, kg 2000
- Trailer load braked (unbraked) (kg) 750
- Permitted number of persons 4 / 6 OPT
- Inner dimensions storage locker right/left W x H (cm) 65 x 120 / 60 x 100 OPT
- Bed dimension rear L x B (cm) 210 x 85 / 205 x 80
- Bed dimension middle L x B (cm) 175 x 100
- Bed dimension alcove L x B (cm) 210 x 160
- Berths 6
- Refrigerator volume incl. freezer (l) 167 (29)
- Fresh water supply (l) 122
- Water supply, l (whilst driving) 20
- Waste water tank approx. l 92
- Sockets 230 V 4
- Sockets: USB 2

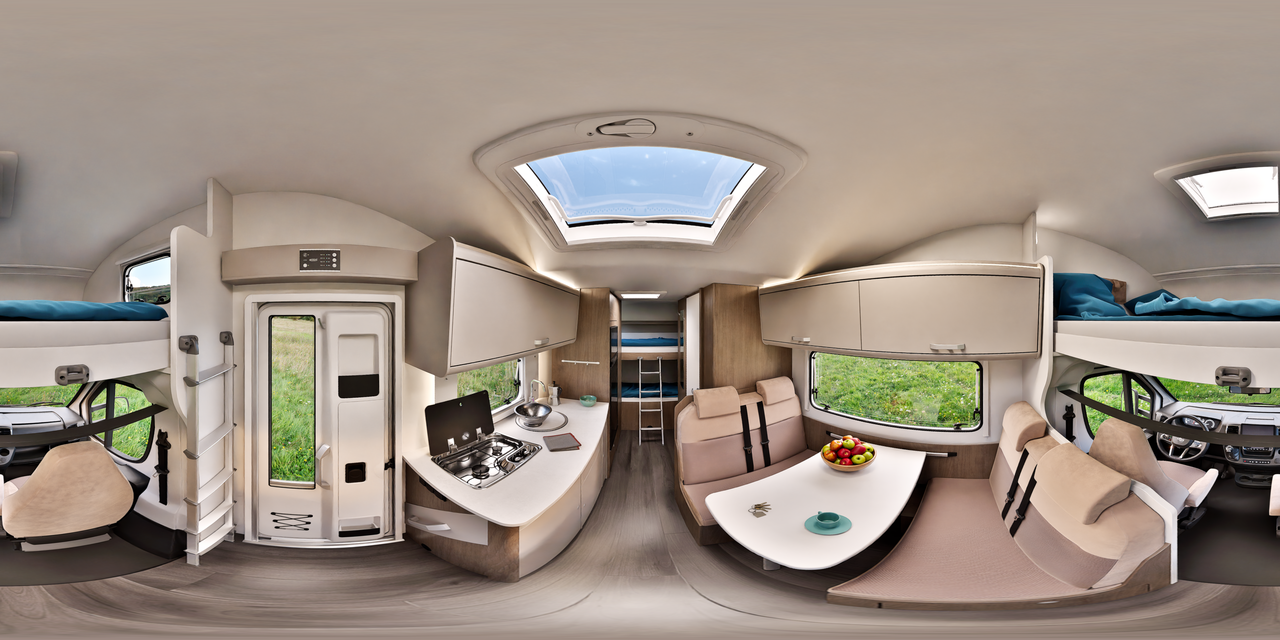

360° view of the A361
A361 standard specification
They don’t come any more compact than this: The A361 is designed to accommodate six travellers with a total vehicle length of just 6.6 m.
Compact comfort: The alcove bed folds up, making the interior feel amazingly spacious. The roomy seating area makes guests feel so comfy, they’ll not want to get up.
Maximum comfort in a compact space: The bunk and alcove beds provide superior comfort thanks to their high-quality mattresses.
Plenty of room for culinary delights in the alcove: Cook like a professional chef with the spacious worktop area and three-burner hob.
Seriously spacious: The convenient placing of the bunk beds creates ample space for the cassette toilet and standalone shower.
With the ISOFIX for two seats fitted as standard, child seats can be easily and particularly firmly anchored in the vehicle. In addition, the empty child seat is also secured during the journey. The ISOFIX child seat anchorage increases the safety of your child while driving.
The interior lighting is equipped with LED lights as standard. This saves power consumption and increases battery life. As LEDs do not get hot, they also offer increased fire and accident safety.
The kitchen drawers provide safe storage within easy reach. In addition, all drawers have a practical Servo Soft pull-in mechanism.
Detail view of the A361
