The CV595 4x4 X-EDITION combines all-wheel drive with generous living comfort. With a standing height of 1.98 m, an integrated roof awning, and thoughtfully designed details, it is ready for getaways at any time of the year.
Your model at a glance.
Discover the floor plan, vehicle data, and equipment options.
Your model at a glance.
Discover the floor plan, vehicle data, and equipment options.
-
- Price
-
from £87,890
- Chassis
- VW Crafter
- Sleeping berths
- 2 - 3
- Length
- 599 cm
- Width from
- 204 cm
- Height
- 272 cm
Important information regarding the selection of your motorhome
When buying a motorhome, camper van or urban vehicle (hereafter: motorhome), it is particularly important to choose the right layout and an appealing design. In addition, weight also plays an essential role. Family, friends, optional equipment, accessories and baggage – space must be available for all of these. At the same time, there are legal and
technical limits to the configuration and load. Every motorhome is designed for a certain weight, which may not be exceeded during driving. For motorhome buyers, this raises the question: How should I configure my vehicle to accommodate passengers, baggage and accessories according to my needs without the vehicle exceeding this maximum
weight? In order to make this decision easier for you, we provide you below with a few tips that are particularly important when selecting your vehicle from our portfolio:1. The technically permissible maximum laden mass…
… is a value set by the manufacturer which the vehicle may not exceed. Carado specifies a layout-related upper limit for the vehicle, which can vary from layout to layout (e.g. 3,500 kg, 4,400 kg). You can find the corresponding specification for each layout in the technical data.2. The mass in running order…
... consists – to put it simply – of the basic vehicle with standard equipment plus a standard weight of 75 kg for the driver. It is legally permissible and possible for the mass in running order of your vehicle to deviate from the nominal value stated in the sales documents. The permissible tolerance is ± 5 %. The permissible range in kilograms is given in
brackets after the mass in running order. In order to provide you with full transparency regarding possible weight deviations, Carado weighs each vehicle at the end of the line and informs your trade partner of your vehicle's weighing result for forwarding to you.
Detailed explanations on the subject of mass in running order can be found in the “Legal Information” section.3. The permitted number of seats (including driver)…
… is determined by the manufacturer in what is referred to as the type-approval procedure. This results in what is referred to as the mass of the passengers. For this, a standard weight of 75 kg per passenger (without driver) is calculated.
Detailed explanations on the subject of mass of the passengers can be found in the “Legal Information” section4. The manufacturer-specified mass for optional equipment…
… is a value set by Carado per layout for the maximum mass of optional equipment that can be ordered. This limit is intended to ensure that the minimum pay-mass, i.e. the legally prescribed free mass for baggage and retrofitted accessories, is actually available for the vehicle load capacity of the vehicles delivered by Carado. If, in exceptional cases, the weighing at the end of the line nevertheless shows that the actual load capacity falls short of the minimum pay-mass due to a permissible weight deviation, we will check together with your trade partner and you whether we should, for example, increase the load capacity of the vehicle, reduce the number of seats or remove optional equipment before delivering the vehicle.
Detailed explanations on the subject of the effects of the tolerances on the minimum pay-mass and the payload can be found in the “Legal Information” section.5. The additional weight of optional equipment and packages...
... increases the actual mass of the vehicle (= mass in running order plus selected optional equipment) and reduces the pay-mass. The specified value shows the additional weight compared to the standard equipment of the respective layout. The total weight of the selected packages and optional equipment must not exceed the manufacturer-specified
mass for optional equipment.Technical data
CV595 4x4 X-EDITION
Pricing information:
Basic price incl. VAT £87,890 Chassis and engine:
Chassis VW Crafter Standard engine 2.0 kW (BHP) 120 (163) Tyre size 235/65 R 16 C Vehicle dimensions:
Length | Width | Height (cm) 599 / 204 / 272 Headroom in living area (cm) 198 Wheelbase (cm) 364 Storage underneath rear bed WxHxD 77 x 75 x 124 Weight-related information:
Permitted number of seats (including driver)* 4 Mass in running order (kg)* 3066 (2913 to 3219)* Manufacturer-specified mass for optional equipment (kg)* 84 Technically permissible maximum laden mass (kg)* 3500 Trailer load braked (unbraked) (kg) 3000 (750) Technology:
Fresh water tank capacity total / at driving filling (l) 90 / 20 Waste water tank (l) 70 Sockets 230 V 3 Sockets: USB 2 Gas bottle storage (filling weight in kg) 1 x 5kg Interior:
Berths 2 - 3 OPT Bed dimension middle L x B (cm) 170 x 100 OPT Bed dimension rear L x B (cm) 200 x 136 Refrigerator volume incl. freezer (l) 84 Miscellaneous:
Heating type Combi 4 D Diesel a) Es handelt sich um eine unverbindliche Preisempfehlung, die auf den deutschen Verkaufspreisen basiert. Preise in anderen Ländern können aufgrund der Währungsumrechnung und der länderspezifischen Mehrwertsteuer, Gebühren und Einfuhrzölle abweichen. Fragen Sie daher zum letzten Stand bitte einen örtlichen Händler nach den für Ihr Land geltenden Preisen.
* Bei der angegebenen Masse in fahrbereitem Zustand handelt es sich um einen im Typgenehmigungsverfahren festgelegten Standardwert. Aufgrund von Fertigungstoleranzen kann die real gewogene Masse in fahrbereitem Zustand vom oben angegebenen Wert abweichen. Abweichungen von bis zu ± 5 % der Masse in fahrbereitem Zustand sind rechtlich zulässig und möglich. Die zulässige Spanne in Kilogramm ist im Klammerzusatz hinter der Masse in fahrbereitem Zustand angegeben. Bei der herstellerseitig festgelegten Masse für Sonderausstattung handelt es sich um einen für jeden Typ und Grundriss ermittelten kalkulatorischen Wert, mit dem [Marke] festlegt, wieviel Gewicht für werkseitig eingebaute Sonderausstattung maximal zur Verfügung steht. Die Begrenzung der Sonderausstattung soll gewährleisten, dass die Mindestnutzlast, d.h. die gesetzlich vorgeschriebene freie Masse für Gepäck und nachträglich eingebautes Zubehör, bei den von [Marke] ausgelieferten Fahrzeugen auch tatsächlich für die Zuladung zur Verfügung steht. Das reale Gewicht Ihres Fahrzeugs ab Werk kann erst bei Wiegung am Bandende ermittelt werden. Sollte die Wiegung im Ausnahmefall ergeben, dass die tatsächliche Zuladungsmöglichkeit trotz der Begrenzung der Sonderausstattung die Mindestnutzlast wegen einer zulässigen Gewichtsabweichung nach oben unterschreitet, werden wir vor einer Auslieferung des Fahrzeugs gemeinsam mit Ihrem Handelspartner und Ihnen prüfen, ob wir bspw. das Fahrzeug auflasten, Sitzplätze reduzieren oder Sonderausstattung herausnehmen. Die technisch zulässige Gesamtmasse des Fahrzeugs sowie die technisch zulässige Gesamtmasse auf der Achse dürfen nicht überschritten werden.-
Packs Basic Pack Highlights X-Edition Framed windows LED lighting integrated above the roof cabinets Shelving unit all around the rear Electric off-road entrance step X-EDITION decals X-EDITION lettering Forest Shadow Folding cab blinds Awning integrated into high roof Base vehicle VW Crafter 3,500 kg | 2.0 | 120 kW | 163 hp Euro 6 | 4MOTION 8-speed automatic transmission Four-wheel drive Start & Stop function incl. charge booster 75 l fuel tank Front bumper in grey (incl. 2 concealed steps) 16" black steel rims Summer tires Rear view camera Radio Composition with 26 cm (10.4") colour touchscreen with 4 speakers Wired & Wireless App Connect (CarPlay & Android Auto) Prepared for VW Connect and VW Connect Plus Mobile connectivity via Bluetooth with inductive charging function Digital Cockpit Pro Air Care Climatronic LED main headlights with LED daytime running lights Daytime running light control with assisted headlight function Exterior mirrors with integrated LED turn signal and wide-angle section Electrically adjustable, heated and foldable exterior mirrors glove compartment Enhanced suspension and damping, as well as enhanced stability Reinforced front axle with independent suspension (max. front/rear axle load: 2,100 kg) Preparation for a trailer hitch (including trailer stabilization) with wiring harness and control unit Central locking with “Keyless Start” keyless ignition system eCall emergency call Laminated windshield with thermal insulation glazing Electronic parking brake Parking assistance at front and rear Hill Start Assist Attention and fatigue detection Front Assist with warning and braking for vehicles, pedestrians, and cyclists Crosswind assist Lane Assist Traffic sign recognition Basic assistance package incl. Intelligent Speed Assist and cruise control system Windscreen wiper interval control with light and rain sensor Tyre pressure monitoring system (direct measurement) Speed limiter Electronic cruise control system Driver and front passenger airbag with front passenger airbag deactivation Electronic Stability Program (ESP) incl. ABS, ASR, EDS, SWA Electric front windows in the cab Digital radio reception (DAV+) 2 remote folding keys Leather multifunction steering wheel with Tiptronic Tyre Mobility Set: 12V compressor and tire sealant First aid kit, warning triangle, safety vest, and warning light Warning buzzer and light for unfastened driver and front passenger seat belt Three-point automatic seat belts in red with height adjustment and front electric belt tensioners Driver and front passenger seat in soft furnishing with double armrests Driver and front passenger seat rotatable Height and tilt adjustment for driver and front passenger seat Stone chip protection for the underbody (front & rear) Ascot Grey Front towing eye Exterior setup 7-year water ingress warranty Double glazed hinged windows with cassette blinds and fly screens Rear hinged window (incl. blackout blind and flyscreen) Both rear doors with hinged window (incl. roller blind) Roof light 40 x 40 cm over lounging area with fly screen and blinds Roof light 40 x 40 cm over bedroom with fly screen and blinds Rear storage space with 4 integrated lashing rings Comfort Isofix for one seat Sliding partition wall incl. access step for rear double bed Half dinette Rear bed with partly slatted frame High quality mattresses with integrated GOODSITE for better sleeping comfort Ergonomically shaped upholstery for improved seating comfort Easy to position spotlight in light rail Spacious storage compartments and storage options Storage space in rear and sliding doors Two-piece flyscreen door Furniture in 'Visby Oak' and 'Sand Grey' Floor in 'Vulcan Grey' Installations Flexible light bar with individually adjustable LED reading spots High-performance, maintenance-free leisure battery (95 Ah AGM) Electric charger for leisure and vehicle battery 12 V / 18 A CEE 230 V external socket with safety device Electric wastewater tank emptying system Sockets 3 x 230V | 1 x USB (double) Heating | gas supply Gas bottle locker for one 5 kg gas bottle Diesel heating Combi 4 incl. integrated altitude pressure sensor and digital control panel Kitchen Ergonomically arranged kitchen with spacious work top Large soft-close drawer in kitchen 2 burner hob and glass lid Worktop behind cooker Fresh water tank capacity total 90 l | waste water tank 70 l Compressor fridge 84 l LED light tube Suspension bar Bathroom Compact bathroom with folding door Foldable washbasin Spacious storage area Cassette toilet C 223 Flush fitting LED spotlights Roof light with fly screen -
Packs Winter Pack Professional Assistance Pack Extended Assistance Pack Advanced Assistance Pack Off-road Pack Base vehicle 17" black alloy wheels Front bumper in grey with painted trim in body colour Fog lights including cornering lights Discover Pro navigation system with 32 cm (12.9") touch colour display with 4 speakers Detachable trailer hitch (including trailer stabilization) High beam control "Light Assist" Rear towing eye Increase of load capacity Weight increase to 3,88 t * Exterior setup Insulated and heated waste water tank Bike rack for 2 bikes (Black) Awning light LED light bar Comfort Wooden duckboard for the shower tray Bed conversion for seating area Installations Lithium battery 104 Ah instead of AGM 95 Ah Mobile internet (WiFi | LTE antenna incl. router) USB-port in the light rail Monocontrol with crash sensor and IceEx Combi 6 DE diesel heater (with electric heating element), including integrated altitude pressure sensor | digital control panel Exterior colour Slate Grey Violet-blue Original Accessories ClearliQ travel water filter KITT VW Bull Bar -
Basic Pack Window in bathroom Roof light over lounge area 70 x 50 cm Shower equipment Rotating plate for table extension in seating area
Interior design of your choice.
Turn your camper van into your second home! The high-quality fabric is not only beautiful to look at, but also durable, UV-resistant, and made for many years on the road.
Interior Design: Forest Shadow

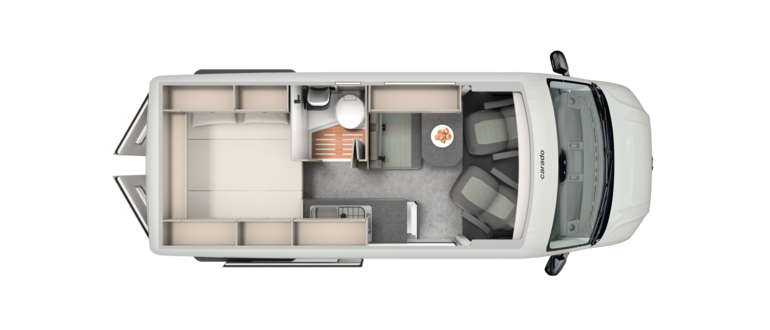

A floor plan full of ideas.
A floor plan full of ideas.
At the rear, extension panels on the left and right provide a sleeping area measuring up to 200 x 136 cm. High-quality mattresses ensure a restful night’s sleep.
The bathroom, with its fold-down washbasin and space-saving folding door, makes particularly efficient use of the available space. At the same time, the toilet and shower facilities are conveniently accessible.
The two-burner hob, sink and pull-out 84-litre fridge with freezer compartment are arranged ergonomically. Drawers with soft-close mechanisms ensure that cooking on the go is pleasantly quiet.
